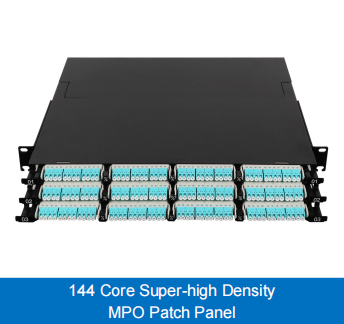

144 Core Super-high Density MPO Patch Panel

1U-19 inch MPO/MTP High-Density rack-mount fiber patch panel is designed for large data center room: MDF application, IDF wiring area optical fiber backbone connection, the fiber distribution unit management, and other the high-density integrated optical fiber environment, etc. It is installed in 19 inch racks and cabinets.

1U 19inch MPO/MTP Patch Panel could load 12 Pre-connected cassette module, and the maximum capacity can be managed is 144 cores for LC interface. Each independent pre-terminated module box is placed in the optical fiber distribution frame, to complete the full set patch panel.

• Optical fiber communication dense wiring system between buildings
• WAA
• LAN
• CATV
• Data center room of commercial building
• Telecommunication base station
• Optical link interconnection in optical active equipment for LAN cabling
• FTTH
• Data center room of industrial area

• Installed in 19 inch rack-mount and cabinet, application for cassette modules centralized management.
• 1U high-density size capacity 144 fibers for LC interface
• 2U high-density size capacity 288 fibers for LC interface
• 4U high-density size capacity 576 fibers for LC interface
• Male or Female MPO/MTP connector are available. Connected and positioned by PIN and adaptor to achieve precise and high stable connection.
• Modular design, plug-in locking structure, the fiber has a clear line sequence identification, easy to test, install, remove and adjust the mating.
• Sturdy and durable, electrostatic coating surface after the Strict prod uction process.
• The cassette module and patch panel are small in size, lightweight, impact-resistant, high-pressure, flame-retardant, corrosion-resistant, strong structure to protect the internal optical fiber.

• More than 25 years manufacturing experience in fiber optic products
• More than 450 assembly workers with 3+ years experience
• More than 10 R&D Engineers
• 16 sets of Germany imported injection machines and 16 production lines
• More than 30 sets of testing machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
• OEM branding accepted
• Regular exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.

• Spot check raw material incoming inspection before production
• Full inspection after every individual process completion
• Full inspection of production half-done stages
• Full inspection of finished products before packing
• Spot check before shipping

• Samples: 1-3 working days
• Mass production orders: 3-7 working days
• Packaging: Plastic bag, carton and pallet options available according to your requirements
